Description
FEATURES
- Channels: 32
- Inputs (total): 46
- Mono-Inputs (Mic/Line) with Inserts: 24
- Stereo-Line/Mono-Mic-Input Channels: 4/4
- Stereo-Effect-Returns (Line): 4
- Stereo-Tape-Return (Line): 1 left/right
- Busses: 15
- Subgroups: 4
- Aux Pre-Fader (Monitor): 2
- Aux Post-Fader (Effects): 2
- Aux switchable Pre/Post-Fader: 2
- Master L/R: 2
- Mono-PFL: 1
- Stereo-AFL: 2

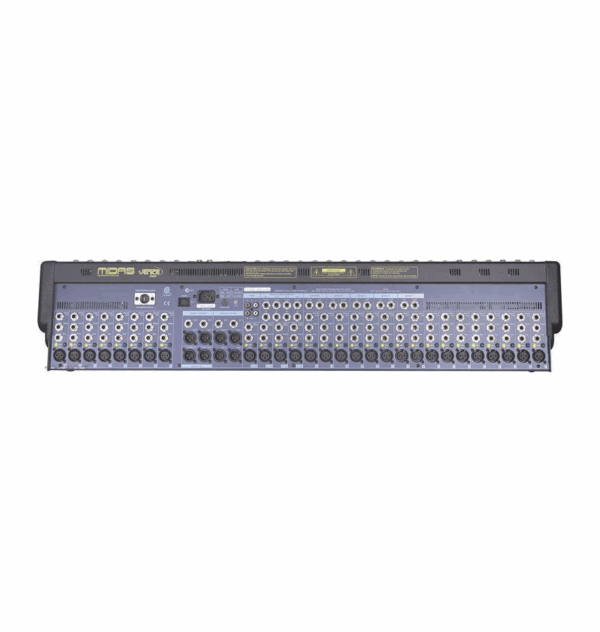

Output
- Subgroups (with Inserts): 4 impedance balanced 1/4 inch jacks
- Aux Pre-Fader (Monitor): 2 XLR (balanced)
- Aux Post-Fader (Effects): 2 impedance balanced 1/4 inch jacks
- Aux switchable Pre/Post-Fader: 2 XLR (balanced)
- Master (with Inserts): 2 XLR (balanced)
- Master B Out (switchable Mono/Stereo, pre-post Fader): 2 XLR (balanced)
- Tape Send (Recording): 1 Stereo (Phono)
- Direct Outputs (1/4 inch Jack): 24
- Stereo-Headphones: 2 Stereo-1/4 inch jack
- Stereo-Speakers: 2 impedance balanced 1/4 inch jacks
- Dimensions (W x D x H): 35.7″ x 22.4″ x 7.6″ (698 mm x 568 mm x 194 mm)
- Weight: 56.9 lbs (25.8 kg)
- Power Consumption: 120W
- Mains Voltage: 110V/120V/220V/230V/240V, 50-60Hz
