DXC-D50 Triax Package

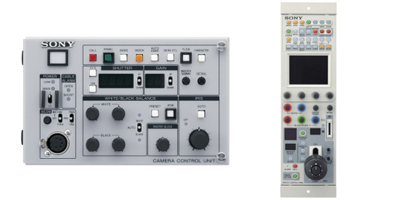

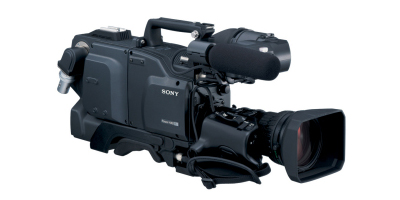

16:9/4:3 Triax Studio System 1 with RCP-D51. This package consists of: DXC-D50WSH 16:9/4:3 Widescreen Camera, CA-TX50 triax camera adaptor, CCU-TX50 triax CCU with SDI and camera controls, RCP-D51 camera remote control panel (dial-type controller), DXF-51 5″ Studio Viewfinder (viewable area, measured diagonally), and VCT-U14 tripod adaptor for professional cameras and camcorders.
Features:
16:9/4:3 Triax Studio System 1 with RCP-D51New 14 Bit A/D LSI– the high-quality images captured by the Power HAD EX CCD’s are processed with greater precision than conventional A/D LSI. In particular, this higher bit resolution allows the contrast to be reproduced more faithfully in mid-tone areas of the picture.Equipped with three 2/3-inch type Power HAD EX CCD’s, each with a significantly high density of (over) 1 million pixels, and offering high horizontal resolutions of 920 TV lines.
Specifications:
Imager: Three 2/3 inch CCD’s Power HAD EX typeBuilt in Filters: Clear, 1/4ND, 1/16ND, 1/64NDHorizontal Resolution:
920 TV lines (DXC-D55H) typical
850 TV lines (4:3) 800 TV lines (16:9) DXC-D55WS
920 TV lines (DXC-D55H) typical
850 TV lines (4:3) 800 TV lines (16:9) DXC-D55WS
""
