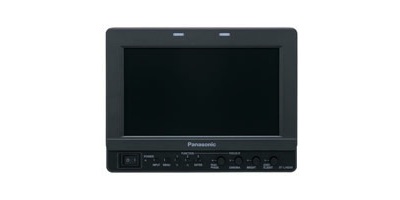

BT-LH80WP 7.9″ LCD Monitor Multi Format SD/HD Widescreen

The BT-LH80W 16:9 HD/SD LCD monitor is a versatile solution for studio and field monitoring. The compact 7.9\” multi-format LCD monitor features advanced video processing technology and delivers high-resolution (800 x 450 pixel) playback and production-quality performance with advanced focus assists for critical focusing in HD. This compact, low-power unit can double as an electronic viewfinder for use with Panasonic high definition camcorders.
  • Focus Assistance includes a Focus-in-Red function (the outlines turn red when sharp focus is achieved) and a Pixel-to-Pixel 2.4X function (to help sharpen focus)
  • Advanced video processor ensures industry\’s lowest delay
  • Lightweight design allows for easy on-camera mounting, especially with optional BT-MOUNT
  • 15-pin viewfinder terminal can connect to the 20-pin viewfinder connection on select Panasonic high definition camcorders 2
  • Can be powered from select Panasonic high definition camcorders 3 (12V, 1.5 Amps)
  • 800 x 480 pixel WVGA resolution panel (effective 800 x 450)
  • Simple Cross Hatch overlay function allows users to check camera tilt and composition
  • Waveform Monitoring, Blue Only and Marker
  • Displays 4:3 aspect ratio images

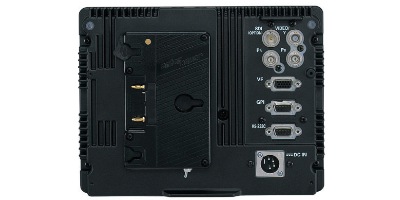

  • RS-232C and GPI remote control terminals
  • Tally (Front: Red/Green, Back Tally: Red)
  • Power Supply: Anton Bauer Gold Mount, 4-in XLR, or special 4-pin cable from camera
